Description
PM (foot/male) cylindrical rubber anti-vibration mounts: a rubber cylinder with a flat bearing face (foot) and a threaded stud on the other side. They isolate the machine from its base, absorb vibration and noise and cushion shocks; it works as a foot: it rests on the floor and the stud screws into the underside of the machine. Available in 34 sizes, with M4, M6, M8, M10, M12 threads.
- TypePM (foot/male)
- Diametersfrom 15 to 75 mm
- ThreadsM4 · M6 · M8 · M10 · M12
- Dimensions34
Features
- Rubber vulcanised to the metal parts: a single piece, with no glued joints to come apart
- Reduces vibration transmitted to floors, structures and electrical panels
- Lowers noise and protects the machine from shocks
- Quick mounting with standard screws or nuts
Typical applications
Operating conditions
| Load | Works best in compression, with the weight spread over all mounts |
|---|---|
| Shear and tension | Only permitted to a limited extent: under tension the rubber can come away |
| Environment | Dry; rubber does not tolerate oils, solvents, ozone or direct sunlight |
| Temperature | Environment: avoid contact with hot parts of the machine |
Advantages
- Simple and inexpensive
- Absorbs vibration and noise well
- Mounts with standard fasteners
Limitations
- Limited elastic travel
- Not suitable for tensile loads
- Rubber ages with oils, ozone and UV rays
How to read the size

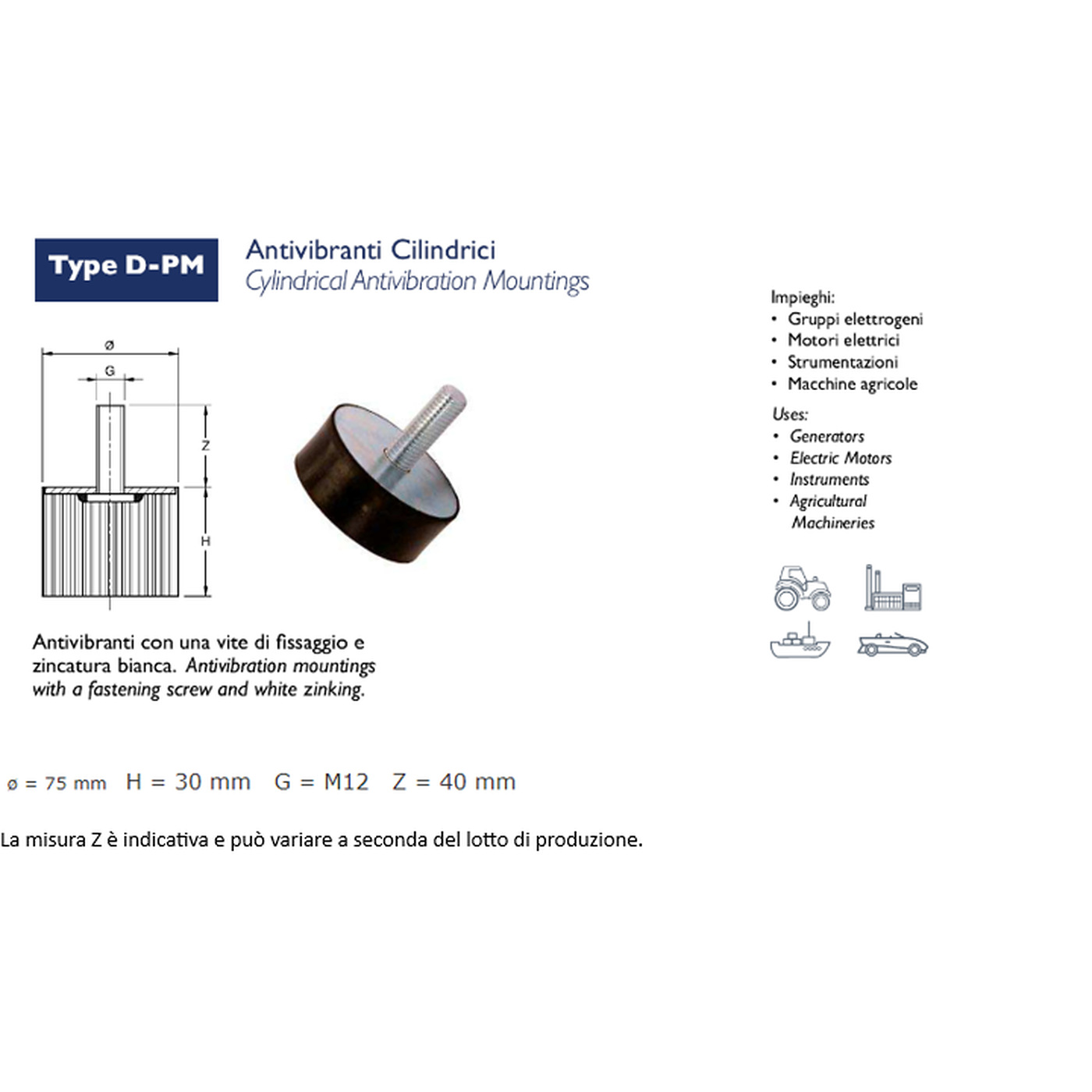

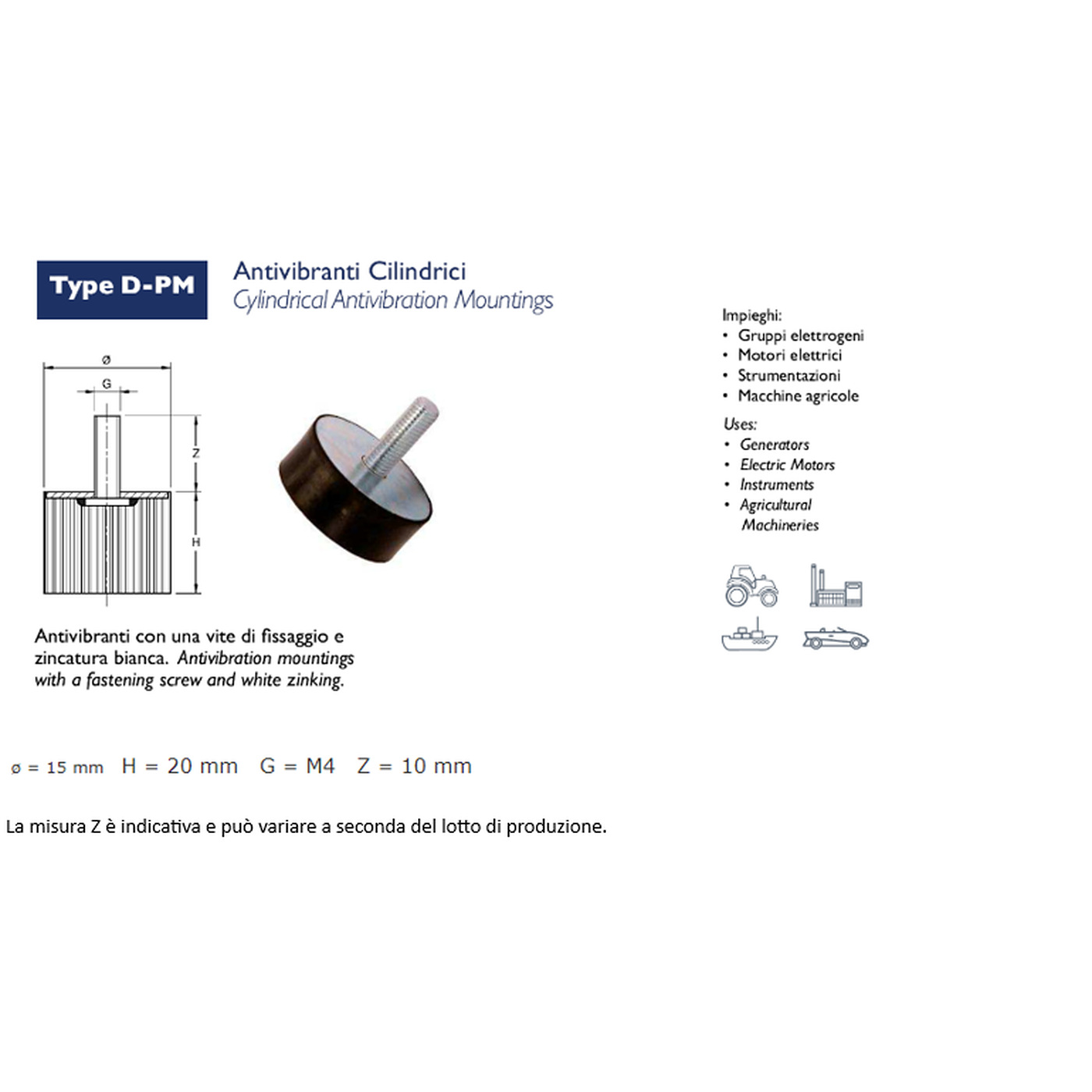

In the "Dimensions" menu you will find the diameter × height of the rubber cylinder (e.g. 20x20 = Ø 20 mm, 20 mm high); in the "Thread" menu, the thread and its length (e.g. M6x6 = M6 thread, 6 mm long).
Technician's tipDivide the weight of the machine by the number of mounting points and choose a mount suited to that load; use the same model at every point, otherwise the machine tilts and vibrates more.
Available codes and sizes (34)Click a code to select it on this page.
| Dimensions | Thread | Price |
|---|---|---|
| 15X15 | M4X10 | 1.10 |
| 15x20 | M4X10 | 1.22 |
| 15x25 | M4X10 | 1.34 |
| 15x30 | M4X10 | 1.46 |
| 20x10 | M6X20 | 1.34 |
| 20X15 | M6X20 | 1.46 |
| 20x20 | M6X20 | 1.59 |
| 20x25 | M6X20 | 1.71 |
| 20x30 | M6X20 | 1.71 |
| 25X15 | M6X20 | 1.46 |
| 25x17 | M6X20 | 1.46 |
| 25x20 | M6X20 | 1.59 |
| 25x28 | M6X20 | 1.59 |
| 25X30 | M6X20 | 1.71 |
| 30x15 | M8X25 | 1.59 |
| 30X20 | M8X25 | 1.71 |
| 30X25 | M8X25 | 1.71 |
| 30X30 | M8X25 | 1.83 |
| 40x25 | M8X25 | 2.44 |
| 40X30 | M8X25 | 2.44 |
| 40X40 | M8X25 | 2.44 |
| 50x20 | M10X30 | 2.93 |
| 50X30 | M10X30 | 3.54 |
| 50x40 | M10X30 | 3.66 |
| 50X45 | M10X30 | 4.15 |
| 50X50 | M10X30 | 4.27 |
| 60X30 | M12X40 | 5.86 |
| 60X40 | M12X40 | 6.34 |
| 60X50 | M12X40 | 7.08 |
| 75X25 | M12X40 | 7.20 |
| 75X50 | M12X40 | 9.76 |
| 75X30 | M12X40 | 7.32 |
| 75X40 | M12X40 | 7.81 |
| 75X55 | M12X40 | 10.00 |
