Description

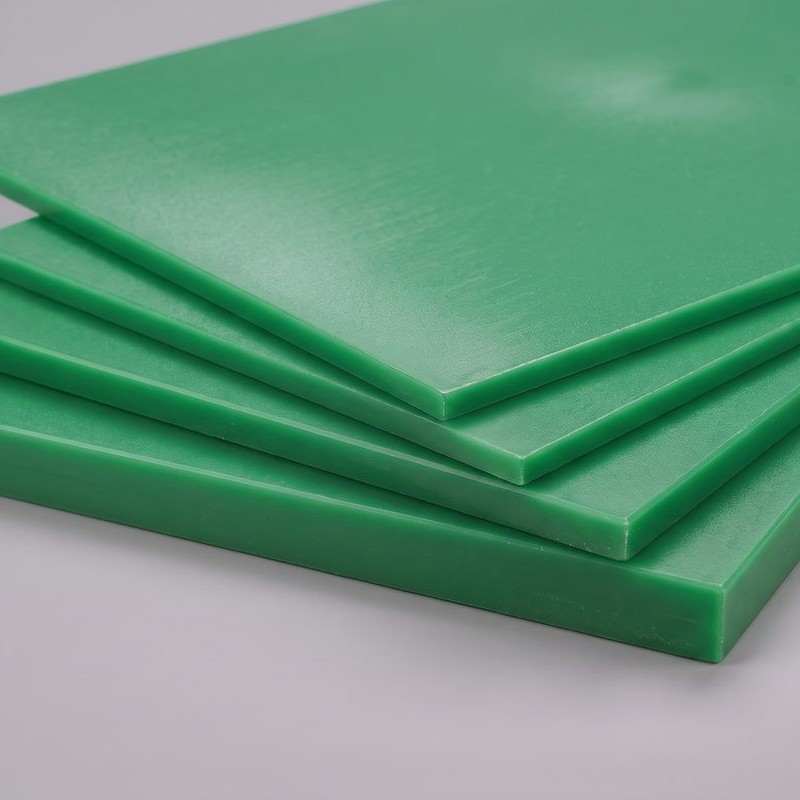

Flat bar in green Polizene 1000 (PE-UHMW), already cut to width and length: machine it directly into guides, slide pads and flat parts. It is the thermoplastic with the highest abrasion resistance: self-lubricating, it absorbs no water and takes impacts even at very low temperatures.
- Thicknessesfrom 6 to 40 mm
- Widthsfrom 20 to 150 mm
- Lengths1000 mm / 2000 mm
- Operating temperature*-200 / +80 °C
- Density*0.94 g/cm³
The material
Polizene 1000 slides extremely well, holds no water and resists acids, alkalis and salts. It is, however, soft and not very rigid: it is the material for sliding wear, not for load-bearing parts. It cannot be glued or welded with common methods, so it is fixed mechanically (countersunk screws, interlocking joints).
Typical applications
Operating conditions
| Service temperature* | -200 / +80 °C continuous |
|---|---|
| Resists | Acids, alkalis, salts, solvents at room temperature. Abrasion resistance higher than steel in many tests |
| Avoid | Applications above +80 °C, gluing, components requiring high rigidity |
| Water absorption* | < 0,01 % |
| Hardness* | 62-66 Shore D |
| Tensile strength* | 17-22 MPa |
| Density* | 0.94 g/cm³ |
Advantages
- Highest abrasion resistance among thermoplastics
- Self-lubricating, very low friction
- Impact resistant down to cryogenic temperatures
- Does not absorb water, excellent chemical resistance
Limitations
- Cannot be glued or welded with common methods
- Low rigidity: not suitable for load-bearing functions
- Temperature limit of +80 °C
- Difficult to machine to very tight tolerances
Available sizes
Thicknesses from 6 to 40 mm, widths from 20 to 150 mm, lengths 1000 mm or 2000 mm: choose the combination from the menus above and the price updates automatically.
Technician's tipChoose it when the problem is sliding wear, not load. If the part has to carry weight or stay rigid, this is not the material.
* Typical values from technical literature for this material, indicative and not measured on the individual batch: for critical uses ask us for the manufacturer's data sheet. The full technical data sheet for the material, in Italian, can be downloaded with the "Datasheet" button at the top.
