Description
Double-row angular contact ball bearings, series 3300 (FAG). It is the medium series of double-row angular contact ball bearings, sturdier than the 3200, for heavier combined loads. This page lists 14 codes, with bores from 15 to 40 mm: choose the code from the menu above.
- TypeDouble-row angular contact ball bearings
- Series3300
- Bore dfrom 15 to 40 mm
- Outer diameter Dfrom 42 to 90 mm
- Codes14
- BrandFAG
Features
- They take combined loads: radial and axial in both directions
- The space of one bearing instead of a pair of angular contact bearings
- Rigid shaft support with little axial play
- Available open or sealed (2RS) where shown in the code
Typical applications
Operating conditions
| Loads | Combined: radial and axial in both directions |
|---|---|
| Speed | Medium |
| Misalignment | Not tolerated |
| Lubrication | Grease or oil |
| Temperature | Usually up to about +120 °C; with seals about +100 °C |
Advantages
- Axial loads in both directions with a single bearing
- High rigidity in little space
- Simpler mounting than a pair of angular contact bearings
Limitations
- Sensitive to misalignment
- Lower speeds than single-row deep groove ball bearings
How to read the code
| 2RS | rubber seals on both sides: protection against dust and splashes, lubricated for life |
|---|
Available codes
The d × D × B dimensions (bore, outer diameter, width) of each code appear in the "Sizes" menu; variants with a suffix (2RS, ZZ, C3…) are listed in the series menu.
Technician's tipMount it with a precise fit on shaft and housing: it is a rigid bearing, and even slight misalignment shortens its life.
Temperatures and speeds are general guidelines for standard steel bearings: for special conditions ask us for the manufacturer's data.
Available codes and sizes (14)Click a code to select it on this page.
| Code | Sizes | Price |
|---|---|---|
| 3302 | d-15 D-42 B-19 | 25.25 |

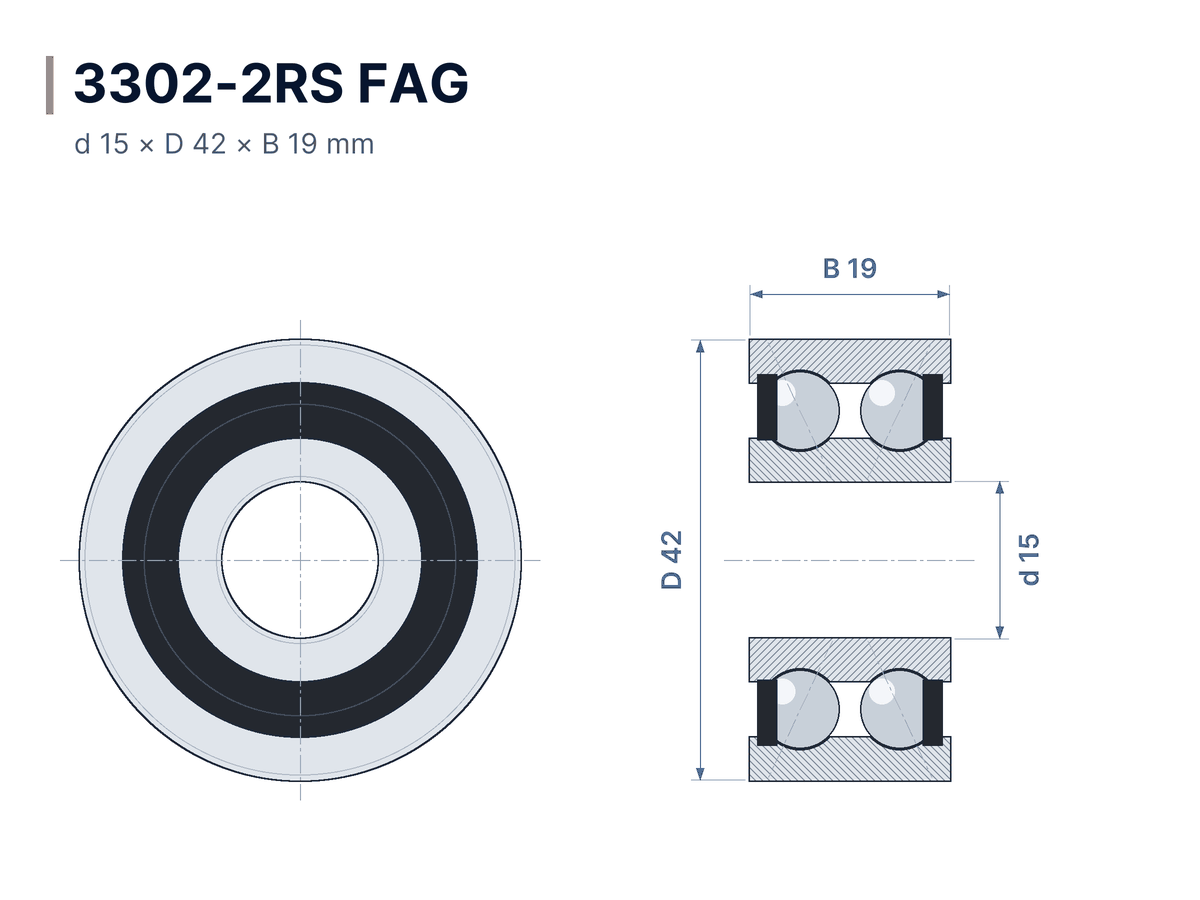

| 3302-2RS | d-15 D-42 B-19 | 30.74 |
| 3303 | d-17 D-47 B-22,20 | 26.96 |
| 3303-2RS | d-17 D-47 B-22,20 | 32.33 |
| 3304 | d-20 D-52 B-22,20 | 28.55 |
| 3304-2RS | d-20 D-52 B-22,20 | 34.89 |
| 3305 | d-25 D-62 B-25,40 | 34.04 |
| 3305-2RS | d-25 D-62 B-25,40 | 40.02 |
| 3306 | d-30 D-72 B-30,20 | 40.87 |
| 3307 | d-35 D-80 B-34,90 | 47.58 |
| 3307-2RS | d-35 D-80 B-34,90 | 57.34 |
| 3308 | d-40 D-90 B-36,50 | 60.27 |

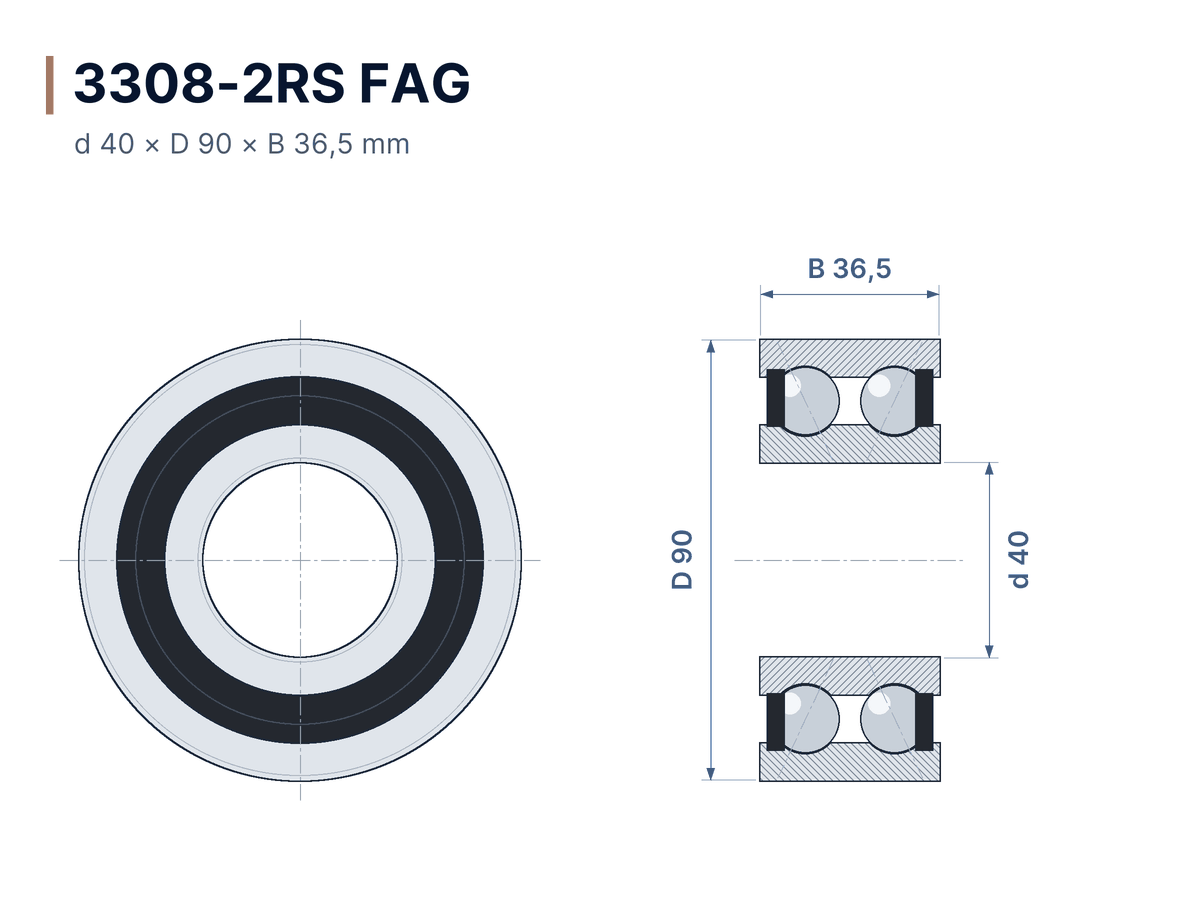

| 3308-2RS | d-40 D-90 B-36,50 | 71.98 |
| 3306-2RS | d-30 D-72 B-30,20 | 48.92 |
Equivalent designations across brands: 2RS (rubber seals on both sides) = 2RSR FAG = 2RS1 / 2RSH SKF = DDU NSK = LLU NTN; 2Z (metal shields on both sides) = 2ZR FAG = 2Z SKF = ZZ NSK, NTN and Koyo; C3 = increased radial internal clearance, the same for all brands.
