Description
Double-row angular contact ball bearings, series 3200 (FAG). It is the light series of double-row angular contact ball bearings: able to take combined loads, radial and axial in both directions, in the space of a single bearing. This page lists 16 codes, with bores from 10 to 40 mm: choose the code from the menu above.
- TypeDouble-row angular contact ball bearings
- Series3200
- Bore dfrom 10 to 40 mm
- Outer diameter Dfrom 30 to 80 mm
- Codes16
- BrandFAG
Features
- They take combined loads: radial and axial in both directions
- The space of one bearing instead of a pair of angular contact bearings
- Rigid shaft support with little axial play
- Available open or sealed (2RS) where shown in the code
Typical applications
Operating conditions
| Loads | Combined: radial and axial in both directions |
|---|---|
| Speed | Medium |
| Misalignment | Not tolerated |
| Lubrication | Grease or oil |
| Temperature | Usually up to about +120 °C; with seals about +100 °C |
Advantages
- Axial loads in both directions with a single bearing
- High rigidity in little space
- Simpler mounting than a pair of angular contact bearings
Limitations
- Sensitive to misalignment
- Lower speeds than single-row deep groove ball bearings
How to read the code
| 2RS | rubber seals on both sides: protection against dust and splashes, lubricated for life |
|---|
Available codes
The d × D × B dimensions (bore, outer diameter, width) of each code appear in the "Sizes" menu; variants with a suffix (2RS, ZZ, C3…) are listed in the series menu.
Technician's tipMount it with a precise fit on shaft and housing: it is a rigid bearing, and even slight misalignment shortens its life.
Temperatures and speeds are general guidelines for standard steel bearings: for special conditions ask us for the manufacturer's data.
Available codes and sizes (18)Click a code to select it on this page.
| Code | Sizes | Price |
|---|---|---|
| 3200 | d-10 D-30 B-14 | 19.52 |
| 3200-2RS | d-10 D-30 B-14 | 23.42 |

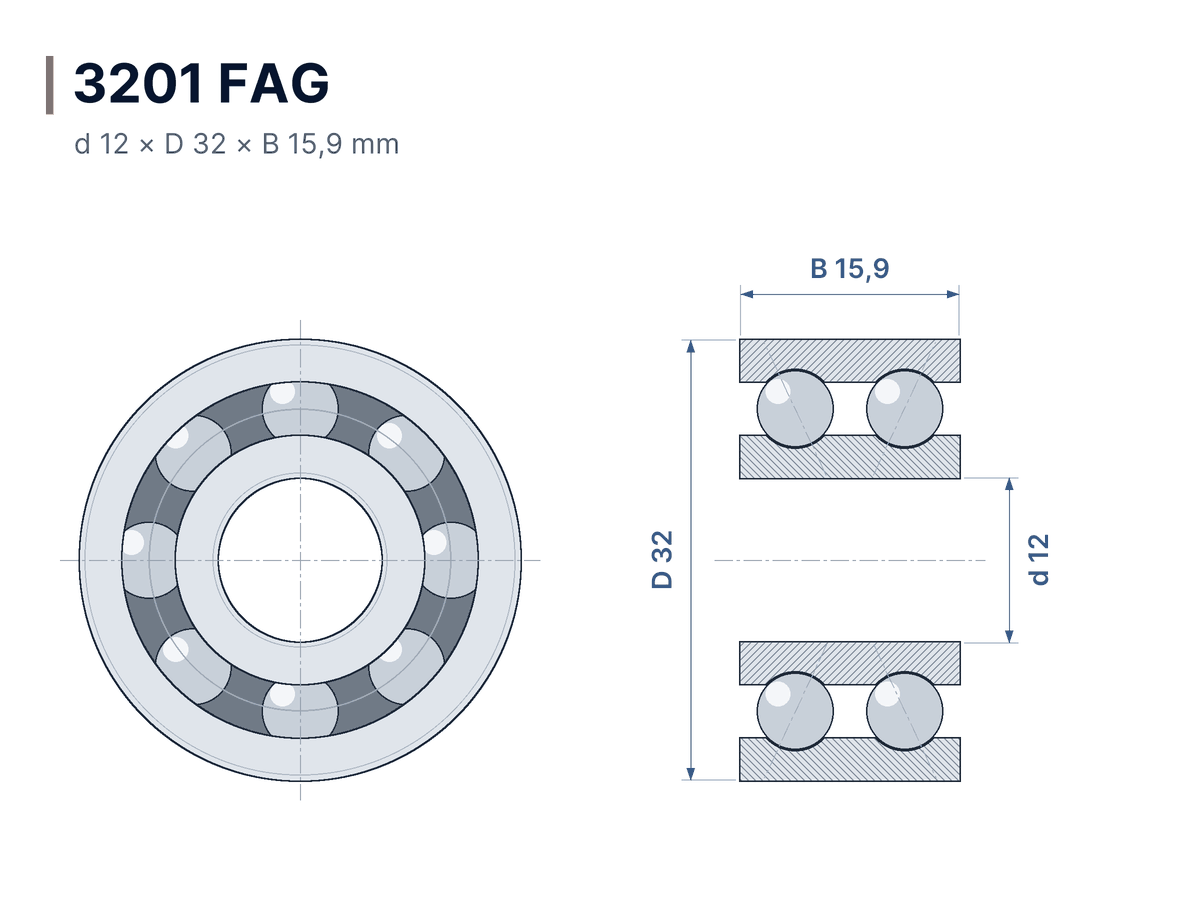

| 3201 | d-12 D-32 B-15,9 | 19.52 |
| 3201-2RS | d-12 D-32 B-15,9 | 24.28 |
| 3202 | d-15 D-35 B-15,90 | 19.76 |
| 3202-2RS | d-15 D-35 B-15,90 | 24.16 |
| 3203 | d-17 D-40 B-17,50 | 20.74 |
| 3203-2RS | d-17 D-40 B-17,50 | 23.55 |
| 3204 | d-20 D-47 B-20,60 | 21.23 |
| 3204-2RS | d-20 D-47 B-20,60 | 24.77 |
| 3205 | d-25 D-52 B-20,60 | 22.20 |
| 3205-2RS | d-25 D-52 B-20,60 | 26.11 |
| 3206 | d-30 D-62 B-23,80 | 26.60 |
| 3206-2RS | d-30 D-62 B-23,80 | 31.11 |
| 3207 | d-35 D-72 B-27 | 31.48 |
| 3207-2RS | d-35 D-72 B-27 | 37.70 |
| 3208 | d-40 D-80 B-30,20 | 40.14 |
| 3208-2RS | d-40 D-80 B-30,20 | 46.24 |
Equivalent designations across brands: 2RS (rubber seals on both sides) = 2RSR FAG = 2RS1 / 2RSH SKF = DDU NSK = LLU NTN; 2Z (metal shields on both sides) = 2ZR FAG = 2Z SKF = ZZ NSK, NTN and Koyo; C3 = increased radial internal clearance, the same for all brands.
