Description
Single-row deep groove ball bearings, series 600 (FAG). It is the series of small bearings for thin shafts: power tools, small motors, fans, model making and precision mechanics. This page lists 28 codes, with bores from 3 to 9 mm: choose the code from the menu above.
- TypeSingle-row deep groove ball bearings
- Series600
- Bore dfrom 3 to 9 mm
- Outer diameter Dfrom 10 to 26 mm
- Codes28
- BrandFAG
Features
- They take radial loads and moderate axial loads in both directions
- Low friction and high speeds, quiet running
- ISO standard dimensions: interchangeable between brands
- Open, shielded (ZZ/2Z) or rubber-sealed (2RS) versions lubricated for life
Typical applications
Operating conditions
| Loads | Radial; moderate axial in both directions |
|---|---|
| Speed | High (open versions are the fastest) |
| Misalignment | Poorly tolerated: shaft and housing must be aligned |
| Lubrication | Grease (for life in ZZ and 2RS versions) or oil |
| Temperature | Usually up to about +120 °C; with rubber seals the limit is set by the seal (about +100 °C) |
Advantages
- The most versatile and easiest bearing to find
- Suitable for high speeds
- Low maintenance in shielded or sealed versions
- Low cost
Limitations
- Only moderate axial loads
- Does not compensate for misalignment between shaft and housing
- For very heavy radial loads or shocks, a roller bearing is better
How to read the code
| 2RS | rubber seals on both sides: protection against dust and splashes, lubricated for life |
|---|---|
| ZZ / 2Z | metal shields on both sides: protection against dust, minimal friction, lubricated for life |
Available codes
The d × D × B dimensions (bore, outer diameter, width) of each code appear in the "Sizes" menu; variants with a suffix (2RS, ZZ, C3…) are listed in the series menu.
Technician's tipTo replace a bearing, all you need is the code engraved on the outer ring: the first digits indicate type and series, the last two the bore (from 04 upwards, multiplied by 5: 6205 = 25 mm bore). If the old one was 2RS or ZZ, take the same protection.
Temperatures and speeds are general guidelines for standard steel bearings: for special conditions ask us for the manufacturer's data.
Available codes and sizes (28)Click a code to select it on this page.
| Code | Sizes | Price |
|---|---|---|
| 607 | d-7 D-19 B-6 | 1.66 |
| 607-2RS | d-7 D-19 B-6 | 2.05 |
| 607-2Z | d-7 D-19 B-6 | 1.82 |
| 608 | d-8 D-22 B-7 | 1.56 |
| 608-2RS | d-8 D-22 B-7 | 2.04 |
| 608-2Z | d-8 D-22 B-7 | 1.81 |
| 609 | d-9 D-24 B-7 | 1.72 |
| 609-2RS | d-9 D-24 B-7 | 2.12 |
| 609-2Z | d-9 D-24 B-7 | 1.88 |
| 623 | d-3 D-10 B-4 | 2.21 |

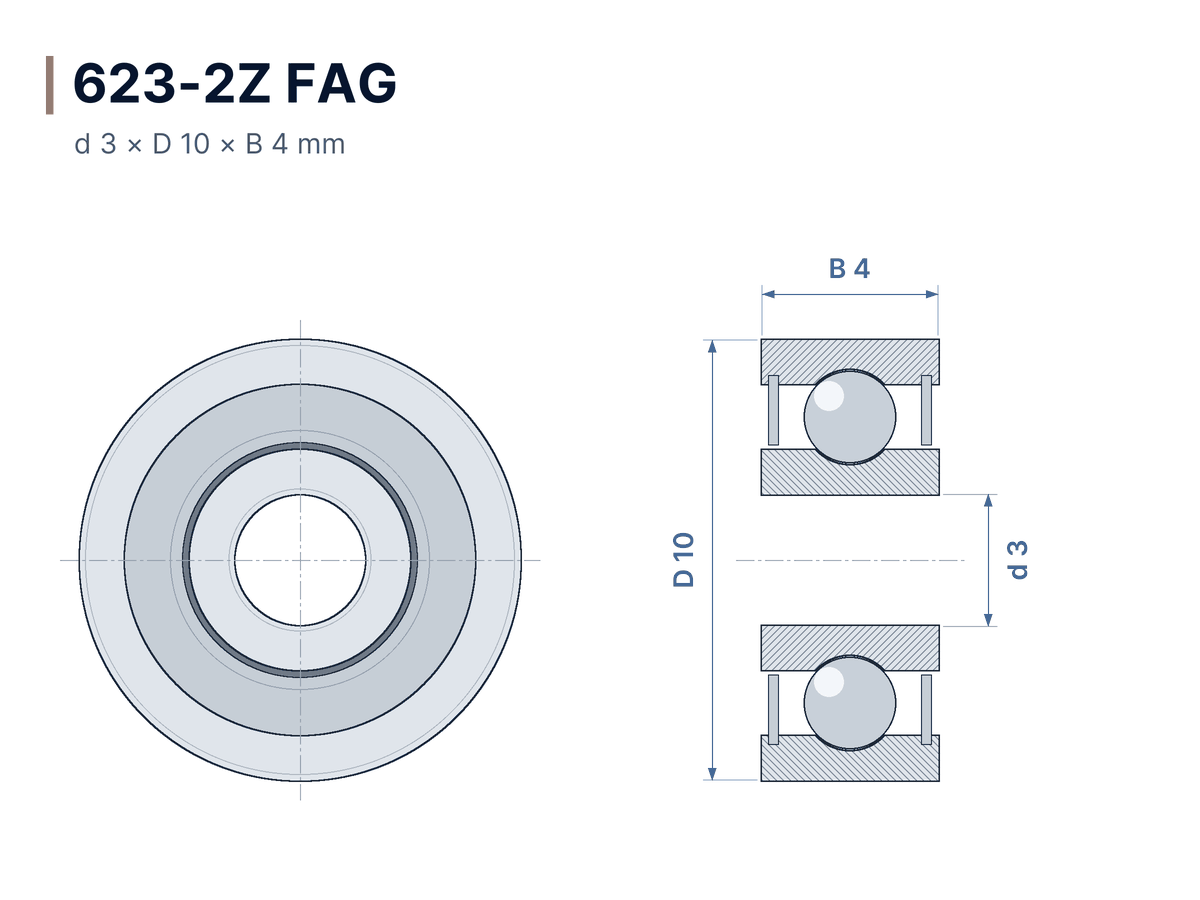

| 623-2Z | d-3 D-10 B-4 | 2.34 |
| 624 | d-4 D-13 B-5 | 1.92 |
| 624-2Z | d-4 D-13 B-5 | 2.04 |
| 625 | d-5 D-16 B-5 | 1.71 |
| 625-2RS | d-5 D-16 B-5 | 2.05 |
| 625-2Z | d-5 D-16 B-5 | 1.82 |
| 626 | d-6 D-19 B-6 | 1.67 |
| 626-2RS | d-6 D-19 B-6 | 2.03 |
| 626-2Z | d-6 D-19 B-6 | 1.79 |
| 627 | d-7 D-22 B-7 | 1.66 |
| 627-2RS | d-7 D-22 B-7 | 2.00 |
| 627-2Z | d-7 D-22 B-7 | 1.77 |
| 629 | d-9 D-26 B-8 | 1.78 |
| 629-2RS | d-9 D-26 B-8 | 2.16 |
| 629-2Z | d-9 D-26 B-8 | 1.90 |
| 634 | d-4 D-16 B-5 | 1.98 |
| 634-2Z | d-4 D-16 B-5 | 2.44 |
| 635-2Z | d-5 D-19 B-6 | 2.06 |
Equivalent designations across brands: 2RS (rubber seals on both sides) = 2RSR FAG = 2RS1 / 2RSH SKF = DDU NSK = LLU NTN; 2Z (metal shields on both sides) = 2ZR FAG = 2Z SKF = ZZ NSK, NTN and Koyo; C3 = increased radial internal clearance, the same for all brands.
