Description

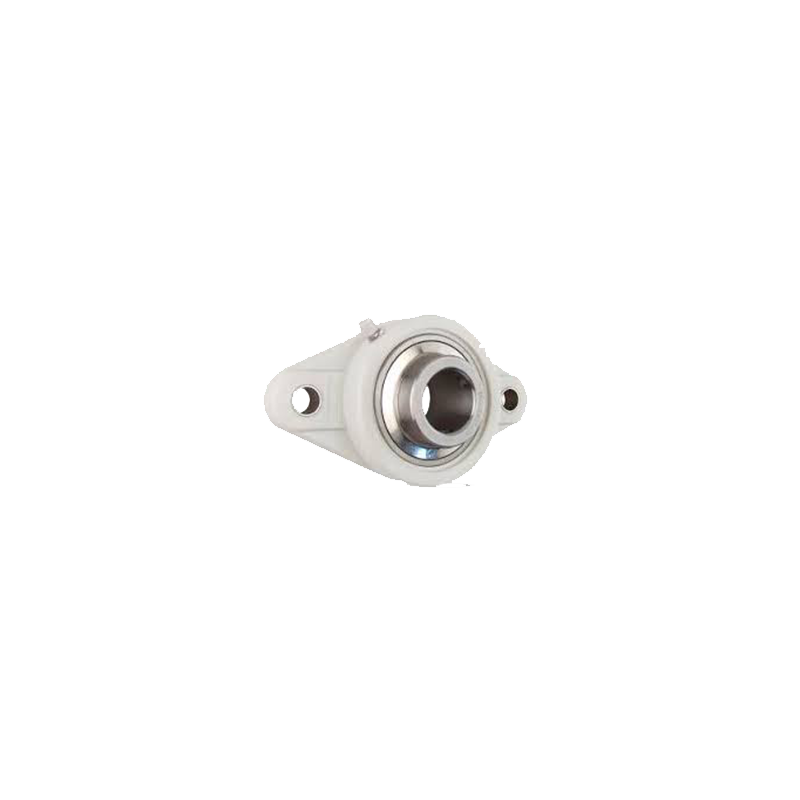

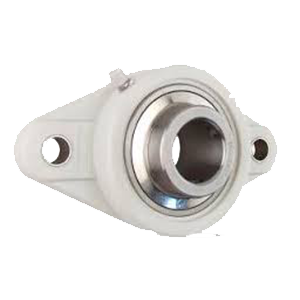

Oval-flange unit in white plastic with stainless steel bearing, size 204, for 20 mm shafts: it comes pre-assembled: slide it onto the shaft, lock it with the set screws and bolt it to the machine.
- Shaft Ø20 mm
- HousingPlastic + stainless steel
- Bearingstainless, size 204
- MountingOval flange
- DesignationUCFL 204 PL
Features
- Bearing with a spherical outer ring in a spherical seat: the unit self-aligns and compensates for small mounting misalignments
- Fixed to the shaft with two set screws on the extended inner ring: no shoulders or lock nuts to machine
- Stainless steel bearing: no rust even with frequent washdowns
- White plastic housing: rust-free, needs no painting and is easy to clean
- Oval flange with two holes: the most compact solution for wall mounting
Typical applications
Operating conditions
| Loads | Light to medium |
|---|---|
| Speed | Medium |
| Temperature | Moderate: the plastic housing does not tolerate heat sources |
| Environment | Damp, frequent washdowns, food |
| Protection | With open or closed end covers of the same size |
Advantages
- Resists washdowns, water and detergents
- Hygienic and easy to clean
- Rust-free: plastic housing and stainless steel bearing
Limitations
- Lower loads than cast iron
- Avoid high temperatures and violent shocks
Technician's tipComplete the unit with a cover of the same size: open where the shaft passes through, closed at the shaft end. It protects both bearing and operators.
