Description

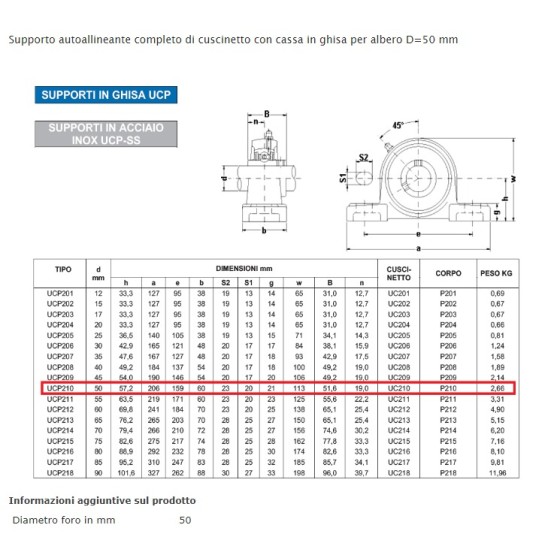

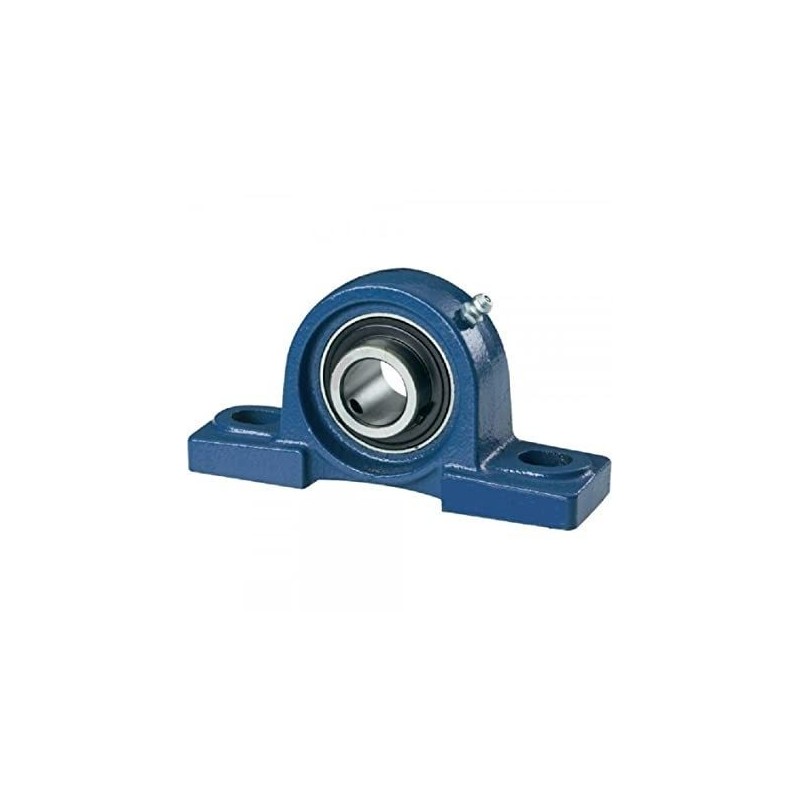

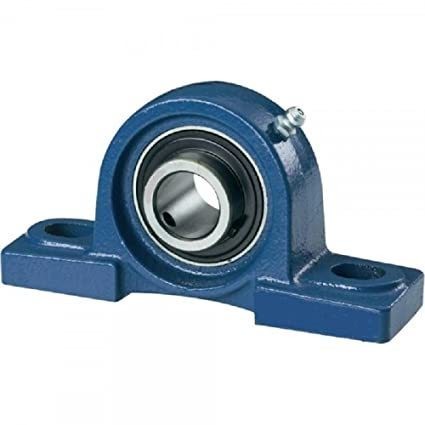

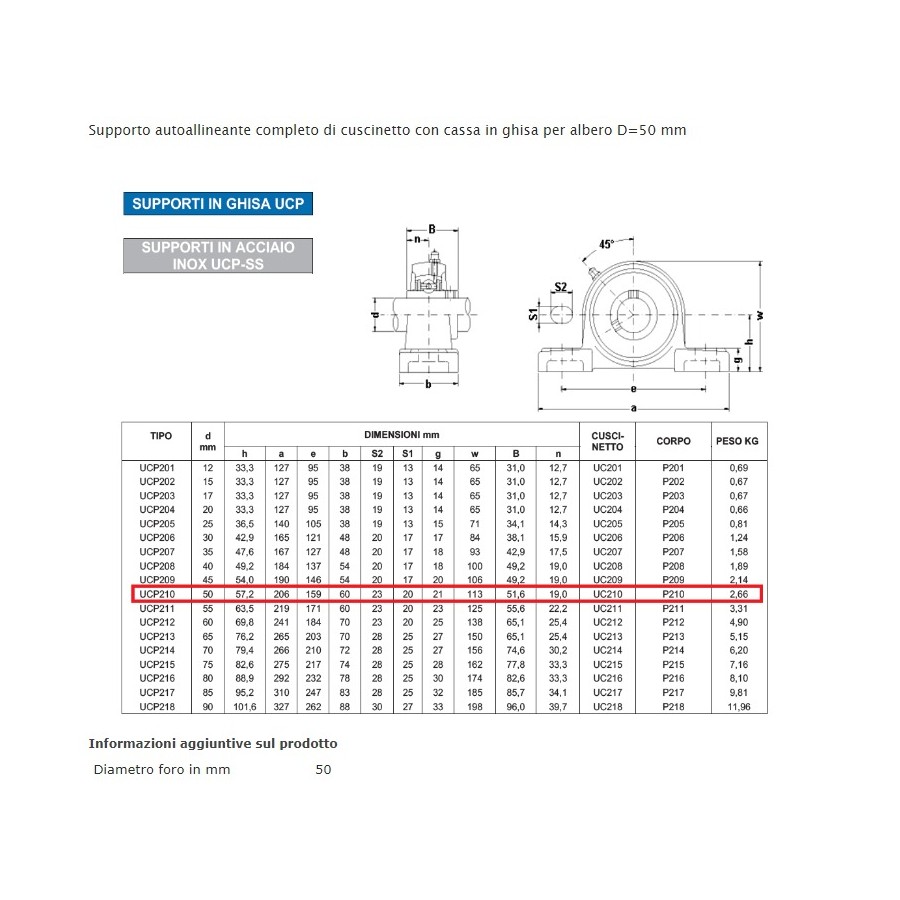

Cast iron pillow block (foot-mounted) with UC 210 bearing, for 50 mm shafts: it comes pre-assembled: slide it onto the shaft, lock it with the set screws and bolt it to the machine.
- Shaft Ø50 mm
- HousingCast iron
- BearingUC 210
- MountingPillow block
- DesignationUCP 210
Features
- Bearing with a spherical outer ring in a spherical seat: the unit self-aligns and compensates for small mounting misalignments
- Fixed to the shaft with two set screws on the extended inner ring: no shoulders or lock nuts to machine
- Shielded, lubricated bearing, ready to fit
- Sturdy cast iron housing with grease nipple for relubrication
- Base with two slots for fixing to a surface parallel to the shaft
Typical applications
Operating conditions
| Loads | Medium radial, light axial |
|---|---|
| Speed | Medium |
| Temperature | Usually -20 to +100 °C |
| Lubrication | Can be relubricated via the grease nipple |
| Environment | Workshops, outdoors, dusty environments (with protective covers where needed) |
Advantages
- Sturdy and relubricatable: long life even in harsh environments
- Quick mounting, no machining of the shaft
- Standard format: interchangeable with units from other brands
Limitations
- Set screw locking does not cope well with frequent reversals and heavy vibration
- Heavier than the sheet steel or aluminium versions
Technician's tipMount the unit, align the shaft and only then tighten the set screws, alternating between them: this way the bearing runs free of stress. Relubricate little and often, until a thin film of clean grease appears at the seals.
