Description

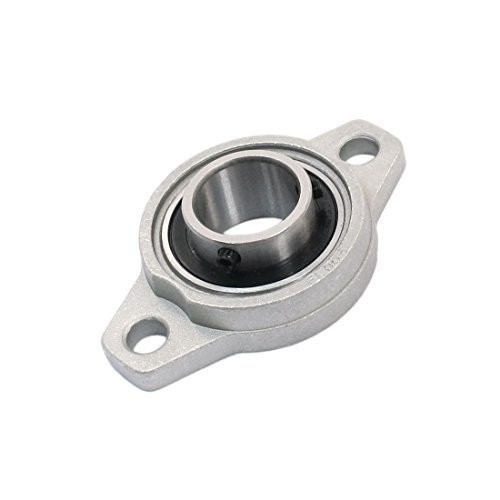

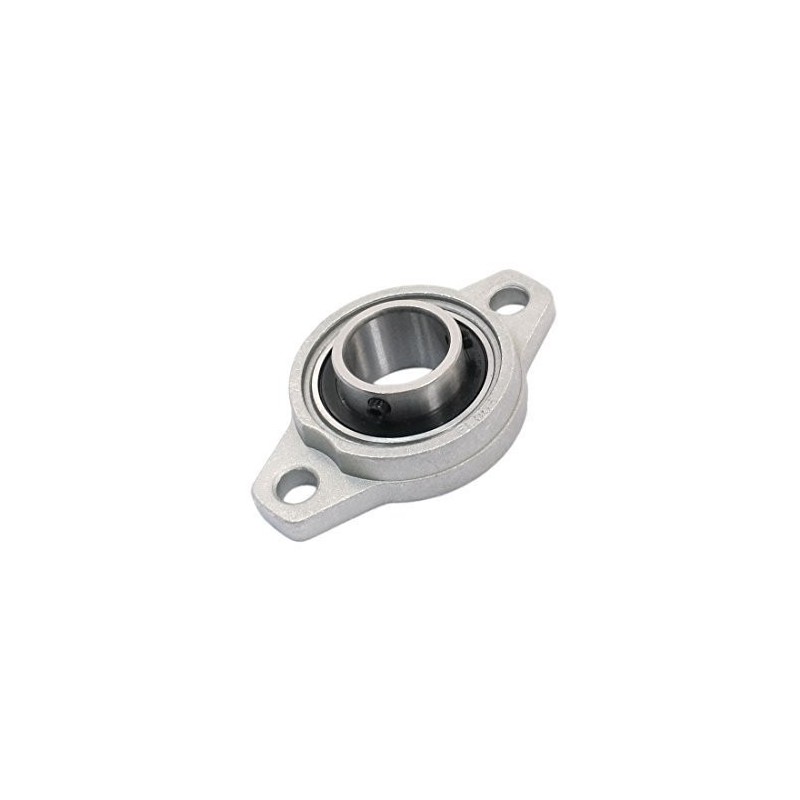

Aluminium flange unit with bearing, for 25 mm shafts: it comes pre-assembled: slide it onto the shaft, lock it with the set screws and bolt it to the machine.
- Shaft Ø25 mm
- HousingAluminium
- BearingIncluded
- MountingAluminium flange
- DesignationUFL 005
Features
- Bearing with a spherical outer ring in a spherical seat: the unit self-aligns and compensates for small mounting misalignments
- Fixed to the shaft with two set screws on the extended inner ring: no shoulders or lock nuts to machine
- Sealed bearing, lubricated for life
- Aluminium housing: light, rust-free and suited to small machines and light automation
- Two-hole oval flange, for wall mounting
Typical applications
Operating conditions
| Loads | Light |
|---|---|
| Speed | Medium |
| Lubrication | Bearing lubricated for life |
| Environment | Indoors, automation, compact machines |
Advantages
- Very light and compact
- Does not rust
- For small shafts (10 to 30 mm)
Limitations
- Light loads only
- Cannot be relubricated
Technician's tipUse washers under the fixing screws and do not overtighten them: aluminium is softer than steel.
